Camera Class Reference

This class is to represent a camera. More...

#include <Camera.h>

Collaboration diagram for Camera:

Public Member Functions
	Camera ()
void	follow (WorldObject *o, Point2D padding=Point2D())
	Follows the given world object with padding amount of leeway. More...
void	stopFollow ()
	Stops following of world object. More...
void	move (Point2D p)
	Moves camera to given position. More...
void	updatePos ()
	Updates the camera's position if following. More...
void	zoom (double zoom)
	Set the current zoom amount. More...
void	zoomIn (double zoom)
	Allows the camera to zoom in a given amount. More...
void	zoomOut (double zoom)
	Allows the camera to zoom out a given amount. More...

Public Attributes
Point2D	pos
	Camera's position. More...

Protected Attributes
WorldObject *	mObject
	Object to follow. More...
Point2D	mPadding
	Padding amount before box starts moving. More...
double	mZoom
	Amount of zoom. More...

Detailed Description

This class is to represent a camera.

• Contains camera's position
• Can scale the view
• Can Move
• Can follow a given WorldObject

Definition at line 13 of file Camera.h.

Constructor & Destructor Documentation

Camera::Camera ( )

inline

Definition at line 16 of file Camera.h.

Member Function Documentation

void Camera::follow	(	WorldObject *	o,
		Point2D	padding = Point2D()
	)

Follows the given world object with padding amount of leeway.

Parameters

o	The WorldObject to follow
padding	The amount of padding in the x and y that the sprite can move without moving the camera

Definition at line 4 of file Camera.cpp.

Here is the caller graph for this function:

void Camera::move

(

Point2D

p

)

Moves camera to given position.

Parameters

p	Position to move the camera

Definition at line 13 of file Camera.cpp.

void Camera::stopFollow

(

)

Stops following of world object.

Definition at line 9 of file Camera.cpp.

void Camera::updatePos

(

)

Updates the camera's position if following.

Todo:

implement edge stopping. I.E. if screen hits the edge of the map stop following the sprite in that direction.

Definition at line 17 of file Camera.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Camera::zoom

(

double

zoom

)

Set the current zoom amount.

Parameters

zoom	Amount to zoom where 1 == 100%

Definition at line 30 of file Camera.cpp.

Here is the call graph for this function:

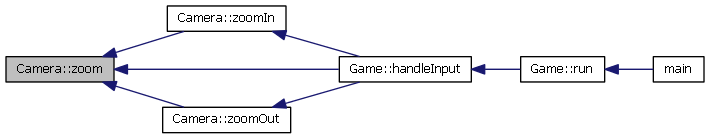

Here is the caller graph for this function:

void Camera::zoomIn

(

double

zoom

)

Allows the camera to zoom in a given amount.

Parameters

zoom	Amount to zoom in relative to currentZoom where 1 == 100%

Definition at line 45 of file Camera.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Camera::zoomOut

(

double

zoom

)

Allows the camera to zoom out a given amount.

Parameters

zoom	Amount to zoom where 1 == 100%

Definition at line 49 of file Camera.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

WorldObject* Camera::mObject

protected

Object to follow.

Definition at line 64 of file Camera.h.

Point2D Camera::mPadding

protected

Padding amount before box starts moving.

Definition at line 66 of file Camera.h.

double Camera::mZoom

protected

Amount of zoom.

Definition at line 68 of file Camera.h.

Point2D Camera::pos

Camera's position.

Definition at line 19 of file Camera.h.

---

The documentation for this class was generated from the following files:

• Camera.h
• Camera.cpp
