CollisionObject Class Reference

This defines CollisionObject boundaries and data for objects/backgrounds. More...

#include <CollisionObject.h>

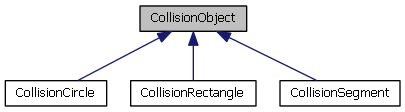

Inheritance diagram for CollisionObject:

Collaboration diagram for CollisionObject:

Public Types
enum	CollisionObjectType { COLLISIONRECTANGLE, COLLISIONCIRCLE, COLLISIONSEGMENT }
	This is to be used for Type checking so as to make no need for dynamic_cast and it's inefficiency. More...

Public Member Functions
	CollisionObject (string n)
bool	checkCollisions (const vector< CollisionObject * > &c, const Point2D cPos, const Point2D pos, vector< string > names=vector< string >())
	Check collision with objects. More...
virtual pair< WorldObject *, CollisionObject * >	collision (const CollisionObject *c, WorldObject *wo, WorldObject *mObj) const =0
	Check collision with objects. More...
virtual void	draw (const Point2D &pos)=0
	Draws the collision data to the screen. More...
virtual CollisionObjectType	getType () const =0
	This provides a simple interface to determine types of objects. More...

Public Attributes
Point2D	mPos
	The position of the center of the collision data. More...

Protected Attributes
string	name
	Name of the collision type. More...
Uint32	color
	The collision box color. More...

Detailed Description

This defines CollisionObject boundaries and data for objects/backgrounds.

This class is tasked with the following:

• being a parent for collision bound types.

Definition at line 20 of file CollisionObject.h.

Member Enumeration Documentation

enum CollisionObject::CollisionObjectType

This is to be used for Type checking so as to make no need for dynamic_cast and it's inefficiency.

Todo:

make sure to put all CollisionObject children in here!

Enumerator
COLLISIONRECTANGLE
COLLISIONCIRCLE
COLLISIONSEGMENT

Definition at line 30 of file CollisionObject.h.

Constructor & Destructor Documentation

CollisionObject::CollisionObject ( string  n )

inline

Definition at line 23 of file CollisionObject.h.

Member Function Documentation

bool CollisionObject::checkCollisions	(	const vector< CollisionObject * > &	c,
		const Point2D	cPos,
		const Point2D	pos,
		vector< string >	names = vector<string>()
	)

Check collision with objects.

Parameters

c	the collision data associated with the sprite to check collision with.
cPos	the position of the sprite we want to check collision with.
pos	the current sprite's position.
names	the names that should be checked (empty checks all)

Returns

Returns true if any of the object's collision datas are colliding .

Definition at line 74 of file CollisionObject.cpp.

virtual pair<WorldObject*, CollisionObject*> CollisionObject::collision ( const CollisionObject *  c, WorldObject *  wo, WorldObject *  mObj  ) const

pure virtual

Check collision with objects.

Parameters

c	a single collision data for an object
wo	Pointer to Object with checking bound
mObj	the current collision's world object

Returns

Returns true if any of the object's collision datas are colliding .

Implemented in CollisionSegment, CollisionCircle, and CollisionRectangle.

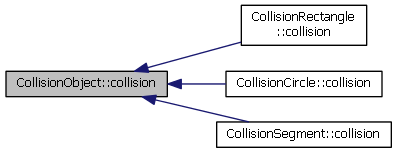

Here is the caller graph for this function:

virtual void CollisionObject::draw ( const Point2D &  pos )

pure virtual

Draws the collision data to the screen.

Implemented in CollisionSegment, CollisionCircle, and CollisionRectangle.

virtual CollisionObjectType CollisionObject::getType ( ) const

pure virtual

This provides a simple interface to determine types of objects.

Returns the name of the Class and Descendants i.e. Something inheriting from Sprite would look like Sprite:Thing

Implemented in CollisionSegment, CollisionCircle, and CollisionRectangle.

Here is the caller graph for this function:

Member Data Documentation

Uint32 CollisionObject::color

protected

The collision box color.

Definition at line 63 of file CollisionObject.h.

Point2D CollisionObject::mPos

The position of the center of the collision data.

Definition at line 23 of file CollisionObject.h.

string CollisionObject::name

protected

Name of the collision type.

Todo:

make this actually be useful

Definition at line 62 of file CollisionObject.h.

---

The documentation for this class was generated from the following files:

• CollisionObject.h
• CollisionObject.cpp
