On-screen text. More...

#include <Text.h>

Inheritance diagram for Text:

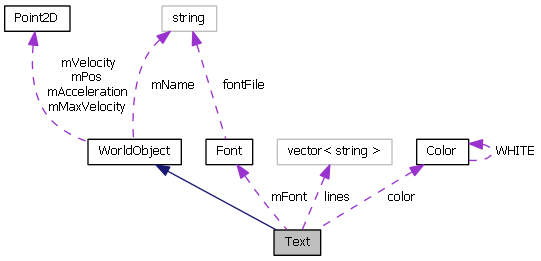

Collaboration diagram for Text:

Public Member Functions
	Text (string name, string t, int size=24, Color c=Color::WHITE, int w=600, int h=150, Point2D pos=Point2D())
	Creates a Text with the given name and text with the correct color and size. More...

	Text (string filename, string sectionName, FontType t, int size=24, Color c=Color::WHITE, int w=600, int h=150, Point2D pos=Point2D())
	Creates a Text with the given name and text with the correct color and size. More...

	~Text ()

void	draw ()
	Draw the object. More...

void	update ()
	What the text should do on update (currently unimplemented) More...

void	setStartLine (unsigned int line)
	Sets the start line if possible. More...

int	getLastLine ()
	Gets the last line that was drawn. More...

Point2D	getBasePos ()
	Obtain Base Pos for drawing. More...

Point2D	getCenterPos ()
	Obtain Center Pos for Collisions. More...

virtual WorldObjectType	getType ()
	This provides a simple interface to determine types of objects. More...

void	wrap ()
	This wraps the text as well as I can guess. More...

Public Member Functions inherited from WorldObject
	WorldObject (std::string name, Point2D pos=Point2D(), int z=0)

virtual void	drawCollisions ()
	Draws CollisionObject data for the Object. More...

void	drawCollisions (vector< CollisionObject * > &vec, const Point2D &pos)
	Draws CollisionObject data for the Object. More...

virtual void	runBehavior ()
	Behavior that WorldObject follows. More...

void	setPosition (double x, double y)
	Sets the WorldObject's x an y coordinate. More...

void	setPosition (Point2D pos)
	Sets the WorldObject's x an y coordinate. More...

void	setBasePosition (double x, double y)
	Sets the WorldObject's x an y coordinate relative to base pos. More...

void	setBasePosition (Point2D pos)
	Sets the WorldObject's x an y coordinate relative to base pos. More...

void	setCenterPosition (double x, double y)
	Sets the WorldObject's x an y coordinate relative to base pos. More...

void	setCenterPosition (Point2D pos)
	Sets the WorldObject's x an y coordinate relative to base pos. More...

void	move (double dx=0.0, double dy=0.0)
	Move by given amount NOTE: This is an instantaneous movement by a given amount and does not correspond to physics which is set to do the updated amount per second. More...

virtual void	move (Point2D direction)
	Moves the WorldObject relative to the current pos. More...

virtual void	moveTowards (Point2D direction)
	Move towards a given coordinate (path finding) More...

Point2D	getPosition ()
	Gets the WorldObject's position. More...

void	setTransparency (float f)
	Sets the WorldObject's transparency. More...

float	getTransparency ()
	Gets the WorldObject's transparency. More...

void	setAngle (float a)
	Sets the WorldObject's angle in degrees. More...

float	getAngle ()
	Gets the WorldObject's angle. More...

void	setVelocity (Point2D vel)
	Sets the WorldObject's velocity as a vector (will set MaxVelocity if needed) More...

void	setVelocity (double xVel, double yVel)
	Sets the WorldObject's velocity from coordinates (will set MaxVelocity if needed) More...

Point2D	getVelocity ()
	Gets the WorldObject's Velocity. More...

void	setMaxVelocity (Point2D vel)
	Sets the WorldObject's MaxVelocity (magnitude) from (x,y) and transforms into a magnitude. More...

void	setMaxVelocity (double vel, Point2D dir)
	Sets the WorldObject's MaxVelocity (magnitude) value in the direction specified. More...

void	setMaxSpeed (double vel)
	Sets the WorldObject's MaxVelocity (magnitude) value in the direction specified. More...

Point2D	getMaxVelocity ()
	Gets the WorldObject's Max Velocity. More...

double	getMaxSpeed ()
	Gets the WorldObject's Max Speed. More...

double	getMaxSpeedSquared ()
	Gets the WorldObject's Max Speed Squared (cheaper operation). More...

void	setAcceleration (Point2D accel)
	Sets the WorldObject's Acceleration in (x,y) coords. More...

Point2D	getAcceleration ()
	Gets the WorldObject's Acceleration. More...

void	setZOrder (int i)

int	getZOrder ()

std::string	getName ()
	returns the WorldObject's name More...

bool	operator< (WorldObject &rhs)
	Sort worldObjects. More...

Public Attributes
Font *	mFont
	Pointer to the font that this text uses. More...

vector< string >	lines
	The lines of text to be rendered. More...

Color	color
	Color to displaty the text. More...

int	width
	The width to draw the text. More...

int	height
	Height of the text object. More...

Protected Attributes
int	startline
	The first line to draw when rendering. More...

int	lastline
	The last line drawn (for scrolling text boxes) More...

Protected Attributes inherited from WorldObject
std::string	mName
	WorldObject's name. More...

Point2D	mPos
	The current (x,y) position. More...

Point2D	mVelocity
	The current velocity vector. More...

Point2D	mMaxVelocity
	The max velocity is the max possible velocity where lengthis the speed. More...

double	mMaxSpeed
	The max Speed if MaxVelocity is 0 to store val. More...

Point2D	mAcceleration
	The current acceleration vector. More...

bool	mVisible
	Determine if Object should be visible. More...

float	mTransparency
	Transparency! More...

float	mAngle
	Angle of rotation. More...

float	mScale
	Scale for the sprit. More...

int	ZOrder
	Stacking order. Determines what draws on top. (subsorted by position) More...

long	mLastUpdate
	Number that indicates when the Object has last updated. Overflows in about 24 days so no worries. More...

long	mLastDraw
	Number that indicates when the Object has last updated. Overflows in about 24 days so no worries. More...

bool	mUnused
	Determines whether or not this object's update function should run. More...

Behavior	mBehavior
	Behavior to act each loop if !mUnused. More...

Additional Inherited Members
Public Types inherited from WorldObject
enum	WorldObjectType { SPRITE, BACKGROUND, MENU, TEXT, PARTICLESYSTEM }
	This is to be used for Type checking so as to make no need for dynamic_cast and it's inefficiency. More...

Detailed Description

On-screen text.

This class is tasked with the following:

displaying text on screen.
- wrapping text (eventually)
Note: This should always be created and destroyed by some object.

Definition at line 22 of file Text.h.

Constructor & Destructor Documentation

Text::Text	(	string	name,
		string	t,
		int	size = `24`,
		Color	c = `Color::WHITE`,
		int	w = `600`,
		int	h = `150`,
		Point2D	pos = `Point2D()`
	)

Creates a Text with the given name and text with the correct color and size.

Parameters

name	Name for the text
t	text to be drawn to the screen
size	Size of the font
c	Color for the font
w	Width of the text box
h	Height of the text box
pos	Position of the top left of the text

Definition at line 73 of file Text.cpp.

Here is the call graph for this function:

Text::Text	(	string	filename,
		string	sectionName,
		FontType	t,
		int	size = `24`,
		Color	c = `Color::WHITE`,
		int	w = `600`,
		int	h = `150`,
		Point2D	pos = `Point2D()`
	)

Creates a Text with the given name and text with the correct color and size.

Parameters

filename	The name of the yaml file to parse w/o path nor extension
sectionName	Name of the section within a yaml doc
t	text to be drawn to the screen
size	Size of the font
c	Color for the font
w	Width of the text box
h	Height of the text box
pos	Position of the top left of the text

Todo:: move this to TextBox or some other class. This really shoudln't be a constructor for Text

Definition at line 13 of file Text.cpp.

Here is the call graph for this function:

Text::~Text ( )

Definition at line 88 of file Text.cpp.

Here is the call graph for this function:

Member Function Documentation

void Text::draw ( )

virtual

Draw the object.

Todo:: split the strings and then add an entry like \t at the end of each'page' to denote difference between same text or a new blob of text.

Implements WorldObject.

Definition at line 93 of file Text.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Point2D Text::getBasePos ( )

inlinevirtual

Obtain Base Pos for drawing.

Implements WorldObject.

Definition at line 83 of file Text.h.

Point2D Text::getCenterPos ( )

inlinevirtual

Obtain Center Pos for Collisions.

Implements WorldObject.

Definition at line 88 of file Text.h.

int Text::getLastLine ( )

Gets the last line that was drawn.

Definition at line 177 of file Text.cpp.

virtual WorldObjectType Text::getType ( )

inlinevirtual

This provides a simple interface to determine types of objects.

Returns the name of the Class and Descendants i.e. Something inheriting from Sprite would look like Sprite:Thing

Implements WorldObject.

Definition at line 93 of file Text.h.

void Text::setStartLine ( unsigned int line )

Sets the start line if possible.

Parameters

line	line to begin

Definition at line 172 of file Text.cpp.

void Text::update ( )

virtual

What the text should do on update (currently unimplemented)

Reimplemented from WorldObject.

Definition at line 166 of file Text.cpp.

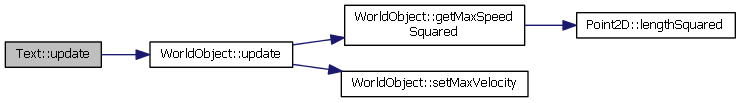

Here is the call graph for this function:

void Text::wrap ( )

This wraps the text as well as I can guess.

Todo:: implement it sometime add one char at a time until the next char would make it too long and wrap like that (will probably break for jap but that's the best I can come up with for now)

Definition at line 182 of file Text.cpp.

Here is the caller graph for this function:

Member Data Documentation

Color Text::color

Color to displaty the text.

Definition at line 60 of file Text.h.

int Text::height

Height of the text object.

Definition at line 72 of file Text.h.

int Text::lastline

protected

The last line drawn (for scrolling text boxes)

Definition at line 105 of file Text.h.

vector<string> Text::lines

The lines of text to be rendered.

Definition at line 57 of file Text.h.

Font* Text::mFont

Pointer to the font that this text uses.

Definition at line 54 of file Text.h.

int Text::startline

protected

The first line to draw when rendering.

Definition at line 102 of file Text.h.

int Text::width

The width to draw the text.

Definition at line 69 of file Text.h.
