Interface for player-world interaction. More...

#include <Player.h>

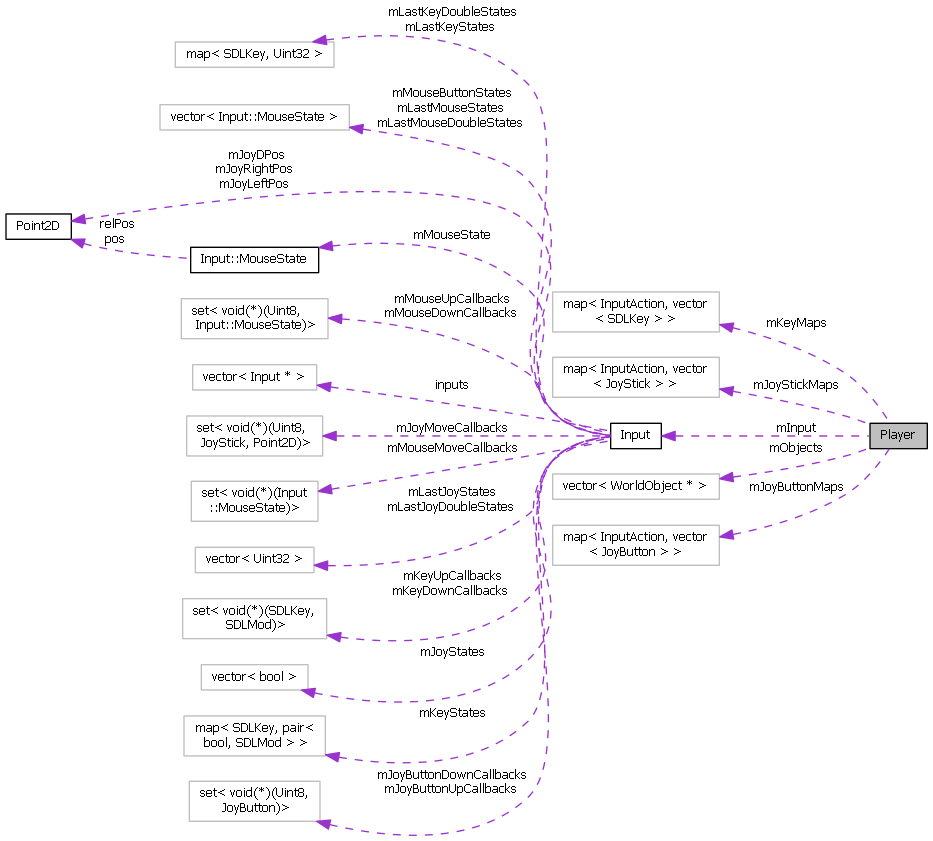

Collaboration diagram for Player:

Public Types
enum	InputAction { Accept, Deny, OpenMenu, Esc, Move, MoveUp, MoveDown, MoveLeft, MoveRight, Cursor, CursorUp, CursorDown, CursorLeft, CursorRight, Action, HotKey1, HotKey2, HotKey3, HotKey4, HotKey5, HotKey6, HotKey7, HotKey8, HotKey9, HotKey10, HotKey11, HotKey12, LBump, RBump, LTrigger, RTrigger }
	This should be a list of all things that would usually appear in a game as settable to some hotkey. More...

Public Member Functions
	Player (string filename)

	Player (map< InputAction, vector< SDLKey >> keyMaps)

	Player (map< InputAction, vector< JoyStick >> joyMaps, map< InputAction, vector< JoyButton >> buttonMaps, int moveJoy=0)

void	Control (WorldObject *wo)
	Adds an object to list of controlled objects. More...

void	RemoveControl (WorldObject *wo)
	Removes Player control over a given Object. More...

void	RemoveControl (string woName)
	Removes Player control over a given Object with given name. More...

WorldObject *	getObject (string name)
	Get a pointer to the WorldObject with the specified name. More...

WorldObject *	getObject (unsigned int index)
	Get a pointer to the WorldObject in the specified position of the players WorldObject vector. More...

vector< WorldObject * >	getObjects ()
	Get a vector of all WorldObject pointers belonging to the player. More...

vector< WorldObject * >	getObjects (string name, int count=-1)
	Get a vector of WorldObject pointers with given name. More...

Point2D	getAveragePosition ()
	Calculate the average position of the player's WorldObjects. More...

Point2D	getAveragePosition (string name)
	Get the position of the player's WorldObject with the specified name. More...

Point2D	getAveragePosition (vector< int > indices)
	Calculate the position of the player using the WorldObjects specified by the vector of indices. More...

Point2D	getAveragePosition (vector< string > names)
	Calculate the position of the player using the WorldObjects with the names included in the vector. More...

void	setPosition (double x, double y)
	Set the position of all objects unde the control of the Player using the average position of the objects. More...

void	setPosition (Point2D pos)
	Set the position of all objects unde the control of the Player using the average position of the objects. More...

void	move (double dx, double dy)
	Move by given relative amount (doing collision) More...

void	move (Point2D direction)
	Moves the Player relative to the current pos (doing collision). More...

void	moveTowards (Point2D point)
	Moves the Player towards the given point (Path finding). More...

void	setTransparency (float f)
	Sets the transparency of the player by setting the transparency of all of the player's WorldObjects. More...

void	changeTransparency (float df)
	Sets the relative transparency of the player by setting the transparency of all of the player's WorldObjects. More...

void	addKeyDownCallback (void(*fn)(SDLKey, SDLMod))
	Add a keyboard button down callback. More...

void	removeKeyDownCallback (void(*fn)(SDLKey, SDLMod))
	remove a keyboard button down callback More...

void	addKeyUpCallback (void(*fn)(SDLKey, SDLMod))
	Add a keyboard button down callback. More...

void	removeKeyUpCallback (void(*fn)(SDLKey, SDLMod))
	remove a keyboard button down callback More...

void	addMouseDownCallback (void(*fn)(Uint8, Input::MouseState))
	Add a keyboard button down callback. More...

void	removeMouseDownCallback (void(*fn)(Uint8, Input::MouseState))
	remove a keyboard button down callback More...

void	addMouseUpCallback (void(*fn)(Uint8, Input::MouseState))
	Add a keyboard button down callback. More...

void	removeMouseUpCallback (void(*fn)(Uint8, Input::MouseState))
	remove a keyboard button down callback More...

void	addMouseMoveCallback (void(*fn)(Input::MouseState))
	Add a keyboard button down callback. More...

void	removeMouseMoveCallback (void(*fn)(Input::MouseState))
	remove a keyboard button down callback More...

void	addJoyButtonDownCallback (void(*fn)(Uint8, JoyButton))
	Add a keyboard button down callback. More...

void	removeJoyButtonDownCallback (void(*fn)(Uint8, JoyButton))
	remove a keyboard button down callback More...

void	addJoyButtonUpCallback (void(*fn)(Uint8, JoyButton))
	Add a keyboard button down callback. More...

void	removeJoyButtonUpCallback (void(*fn)(Uint8, JoyButton))
	remove a keyboard button down callback More...

void	addJoyMoveCallback (void(*fn)(Uint8, JoyStick, Point2D))
	Add a keyboard button down callback. More...

void	removeJoyMoveCallback (void(*fn)(Uint8, JoyStick, Point2D))
	remove a keyboard button down callback More...

Point2D	getMovement (InputAction act=Move)
	Obtain the movement Value from this input. More...

bool	pressed (InputAction act)
	Whether a key is pressed on this input. More...

bool	triggered (InputAction act, int ms=-1)
	Whether a key is triggered. More...

bool	doubleTapped (InputAction act, int ms=-1)
	Whether a key is double tapped. More...

Static Public Member Functions
static bool	getAllPressed (InputAction act)
	Check all inputs for values of act being down. More...

static bool	getAllTriggered (InputAction act, int ms=-1)
	Check all inputs for values for act being triggered (down then up) More...

static Point2D	getAllMovement (InputAction act=Move)
	Check all inputs for values of movement. More...

Protected Attributes
vector< WorldObject * >	mObjects
	The list of objects we control. More...

Input *	mInput
	Input device we are getting input from. More...

map< InputAction, vector < SDLKey > >	mKeyMaps
	map from InputAction to actual keyboard input More...

map< InputAction, vector < JoyButton > >	mJoyButtonMaps
	map from InputAction to joystick buttons More...

map< InputAction, vector < JoyStick > >	mJoyStickMaps
	map from InputAction to joystick buttons More...

bool	useJoystick
	Whether or not to use the Joystick for input. More...

Detailed Description

Interface for player-world interaction.

This class is tasked with the following:

keeping track of all objects under its control
keeping track of and managing input devices
providing an interface to update objects under its control

Definition at line 18 of file Player.h.

Member Enumeration Documentation

enum Player::InputAction

This should be a list of all things that would usually appear in a game as settable to some hotkey.

Todo:: this needs to be loaded/generated from a config file.

Enumerator
Accept
Deny
OpenMenu
Esc
Move
MoveUp
MoveDown
MoveLeft
MoveRight
Cursor
CursorUp
CursorDown
CursorLeft
CursorRight
Action
HotKey1
HotKey2
HotKey3
HotKey4
HotKey5
HotKey6
HotKey7
HotKey8
HotKey9
HotKey10
HotKey11
HotKey12
LBump
RBump
LTrigger
RTrigger

Definition at line 27 of file Player.h.

Constructor & Destructor Documentation

Player::Player ( string filename )

Todo:: LOAD FROM FILE!!!!

Todo:: fix up the initialization

Definition at line 4 of file Player.cpp.

Here is the call graph for this function:

Player::Player ( map< InputAction, vector< SDLKey >> keyMaps )

Definition at line 124 of file Player.cpp.

Player::Player	(	map< InputAction, vector< JoyStick >>	joyMaps,
		map< InputAction, vector< JoyButton >>	buttonMaps,
		int	moveJoy = `0`
	)

Definition at line 129 of file Player.cpp.

Member Function Documentation

void Player::addJoyButtonDownCallback ( void(*)(Uint8, JoyButton) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::addJoyButtonUpCallback ( void(*)(Uint8, JoyButton) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::addJoyMoveCallback ( void(*)(Uint8, JoyStick, Point2D) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::addKeyDownCallback ( void(*)(SDLKey, SDLMod) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::addKeyUpCallback ( void(*)(SDLKey, SDLMod) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::addMouseDownCallback ( void(*)(Uint8, Input::MouseState) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::addMouseMoveCallback ( void(*)(Input::MouseState) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::addMouseUpCallback ( void(*)(Uint8, Input::MouseState) fn )

Add a keyboard button down callback.

Parameters

fn	The function to add

void Player::changeTransparency ( float df )

Sets the relative transparency of the player by setting the transparency of all of the player's WorldObjects.

Parameters

df	The amount to change the Player's transparency

Definition at line 286 of file Player.cpp.

void Player::Control ( WorldObject * wo )

Adds an object to list of controlled objects.

Parameters

wo	World object to put under player's control

Definition at line 135 of file Player.cpp.

Here is the caller graph for this function:

bool Player::doubleTapped	(	Player::InputAction	act,
		int	ms = `-1`
	)

Whether a key is double tapped.

Parameters

act	The action to determine
ms	This value is an optional value that checks against the given ms instead of TRIGGERTIME (this value cannot be larger than 2^31)

Returns: whether the button has been pressed within TRIGGERTIME (this value cannot be larger than 2^31) ticks

Todo:: define a trigger time

Todo:: make this check if shift and ctrl are down instead of triggered and triggered for the rest

Definition at line 346 of file Player.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Point2D Player::getAllMovement ( Player::InputAction act = Move )

static

Check all inputs for values of movement.

For keyboard this would generate a vector based on movement keys
For joysticks the vetor will be the raw vector of the up/down left/right axes

Definition at line 317 of file Player.cpp.

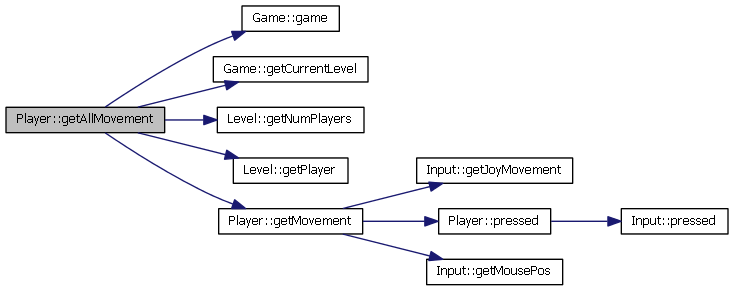

Here is the call graph for this function:

Here is the caller graph for this function:

bool Player::getAllPressed ( Player::InputAction act )

static

Check all inputs for values of act being down.

Parameters

act	The action to be pressed

Definition at line 295 of file Player.cpp.

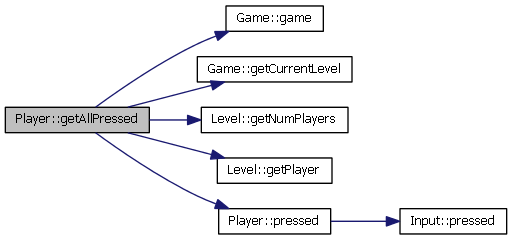

Here is the call graph for this function:

Here is the caller graph for this function:

bool Player::getAllTriggered	(	Player::InputAction	act,
		int	ms = `-1`
	)

static

Check all inputs for values for act being triggered (down then up)

Parameters

ms	This value is an optional value that checks against the given ms instead of TRIGGERTIME
act	Action to be triggered

Definition at line 306 of file Player.cpp.

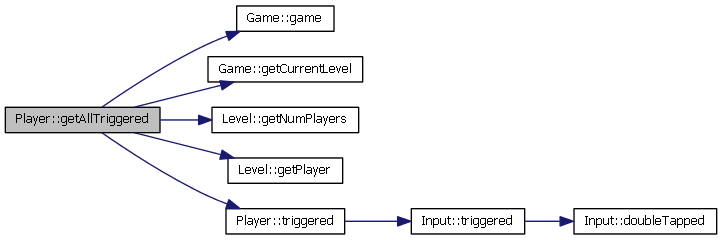

Here is the call graph for this function:

Here is the caller graph for this function:

Point2D Player::getAveragePosition ( )

Calculate the average position of the player's WorldObjects.

Returns: The average position of all WorldOjects under Player's control

Definition at line 190 of file Player.cpp.

Here is the caller graph for this function:

Point2D Player::getAveragePosition ( string name )

Get the position of the player's WorldObject with the specified name.

Parameters

name	Name of the WorldObject that the position will be defined by.

Returns: Returns the position of the first WorldObject under the Player's contorl with given name

Definition at line 201 of file Player.cpp.

Here is the call graph for this function:

Point2D Player::getAveragePosition ( vector< int > indices )

Calculate the position of the player using the WorldObjects specified by the vector of indices.

Parameters

indices List of WorldObject positions in the players vector of WorldObjects that specifies which WorldObjects to include when calculating the player position.

Returns: The average position of the Player controlled objects at the given indices.

Definition at line 208 of file Player.cpp.

Point2D Player::getAveragePosition ( vector< string > names )

Calculate the position of the player using the WorldObjects with the names included in the vector.

Parameters

names List of WorldObject names for objects that will be used when calculating the player position.

Returns: The average position of Player controlled objects with the given names

Definition at line 219 of file Player.cpp.

Here is the call graph for this function:

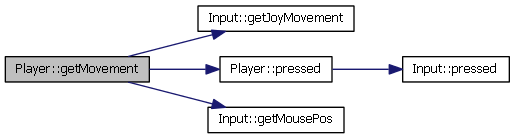

Point2D Player::getMovement ( Player::InputAction act = Move )

Obtain the movement Value from this input.

Parameters

act	The action/Joystick to obtain movement data for

Returns

For keyboard this would generate a vector based on movement keys
For joysticks the vetor will be the raw vector of the up/down left/right axes

Definition at line 365 of file Player.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

WorldObject * Player::getObject ( string name )

Get a pointer to the WorldObject with the specified name.

Parameters

name	Name of the desired WorldObject.

Returns: The first WorldObject with the given name

Definition at line 155 of file Player.cpp.

Here is the caller graph for this function:

WorldObject * Player::getObject ( unsigned int index )

Get a pointer to the WorldObject in the specified position of the players WorldObject vector.

Parameters

index Position of the desired WorldObject.

Returns: The WorldObject at the given index

Definition at line 166 of file Player.cpp.

vector< WorldObject * > Player::getObjects ( )

Get a vector of all WorldObject pointers belonging to the player.

Returns: All WorldObjects under control by this player

Definition at line 171 of file Player.cpp.

Here is the caller graph for this function:

vector< WorldObject * > Player::getObjects	(	string	name,
		int	count = `-1`
	)

Get a vector of WorldObject pointers with given name.

If count is specified, then it will return at most that many pointers.

Parameters

name	Name of the WorldObject desired by the user.
count	Maximum number of pointers to retrieve.

Returns: Returns the first count number of objects under the Player's control

Definition at line 176 of file Player.cpp.

void Player::move	(	double	dx,
		double	dy
	)

Move by given relative amount (doing collision)

Parameters

dx	Amount to move x
dy	Amount to move y

Definition at line 257 of file Player.cpp.

Here is the caller graph for this function:

void Player::move ( Point2D direction )

Moves the Player relative to the current pos (doing collision).

Parameters

direction Direction to move the Player

Definition at line 264 of file Player.cpp.

void Player::moveTowards ( Point2D point )

Moves the Player towards the given point (Path finding).

Parameters

point Point to move the Player towards.

Todo:: Implement with AI

Definition at line 271 of file Player.cpp.

bool Player::pressed ( InputAction act )

Whether a key is pressed on this input.

Parameters

act	The action to determine

Returns: whether the button is currently down

Definition at line 387 of file Player.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Player::RemoveControl ( WorldObject * wo )

Removes Player control over a given Object.

Parameters

wo	Object to stop controlling

Definition at line 139 of file Player.cpp.

void Player::RemoveControl ( string woName )

Removes Player control over a given Object with given name.

Parameters

woName Object to stop controlling

Definition at line 147 of file Player.cpp.

void Player::removeJoyButtonDownCallback ( void(*)(Uint8, JoyButton) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::removeJoyButtonUpCallback ( void(*)(Uint8, JoyButton) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::removeJoyMoveCallback ( void(*)(Uint8, JoyStick, Point2D) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::removeKeyDownCallback ( void(*)(SDLKey, SDLMod) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::removeKeyUpCallback ( void(*)(SDLKey, SDLMod) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::removeMouseDownCallback ( void(*)(Uint8, Input::MouseState) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::removeMouseMoveCallback ( void(*)(Input::MouseState) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::removeMouseUpCallback ( void(*)(Uint8, Input::MouseState) fn )

remove a keyboard button down callback

Parameters

fn	The function to add

void Player::setPosition	(	double	x,
		double	y
	)

Set the position of all objects unde the control of the Player using the average position of the objects.

Parameters

x	New x position of the centroid of the player.
y	New y position of the centroid of the player.

Definition at line 235 of file Player.cpp.

Here is the call graph for this function:

void Player::setPosition ( Point2D pos )

Set the position of all objects unde the control of the Player using the average position of the objects.

Parameters

pos	New position for the centroid of the player.

Definition at line 246 of file Player.cpp.

Here is the call graph for this function:

void Player::setTransparency ( float f )

Sets the transparency of the player by setting the transparency of all of the player's WorldObjects.

Parameters

f	The WorldObject's transparency [0,1] other values will be force set

Definition at line 279 of file Player.cpp.

bool Player::triggered	(	Player::InputAction	act,
		int	ms = `-1`
	)

Whether a key is triggered.

Parameters

act	The action to determine
ms	This value is an optional value that checks against the given ms instead of TRIGGERTIME (this value cannot be larger than 2^31)

Returns: whether the button has been pressed within TRIGGERTIME (this value cannot be larger than 2^31) ticks

Todo:: define a trigger time

Definition at line 328 of file Player.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Input* Player::mInput

protected

Input device we are getting input from.

Definition at line 348 of file Player.h.

map<InputAction, vector<JoyButton> > Player::mJoyButtonMaps

protected

map from InputAction to joystick buttons

Definition at line 354 of file Player.h.

map<InputAction, vector<JoyStick> > Player::mJoyStickMaps

protected

map from InputAction to joystick buttons

Definition at line 357 of file Player.h.

map<InputAction, vector<SDLKey> > Player::mKeyMaps

protected

map from InputAction to actual keyboard input

Definition at line 351 of file Player.h.

vector<WorldObject*> Player::mObjects

protected

The list of objects we control.

Definition at line 345 of file Player.h.

bool Player::useJoystick

protected

Whether or not to use the Joystick for input.

Definition at line 360 of file Player.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
