High-level controller for the game This class is tasked with the following: More...

#include <Game.h>

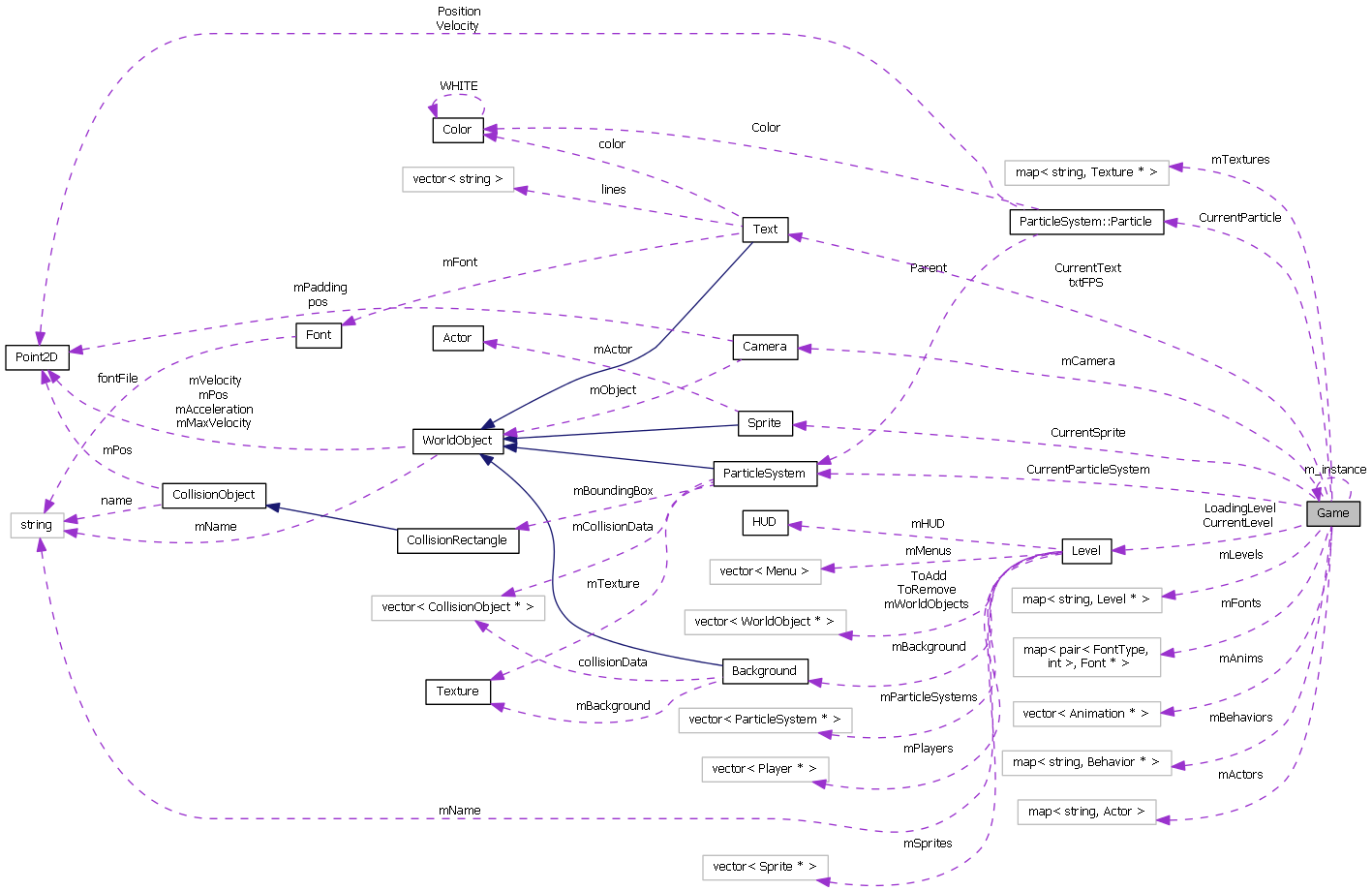

Collaboration diagram for Game:

Public Member Functions
Level *	getCurrentLevel ()
	Gets the current level being played. More...

void	setCurrentLevel (string name)
	Sets the current level to play. More...

Level *	loadLevel (string name)
	Loads content for the next level to play. More...

string	getLevelKey ()
	Gets the index of the current level being played. More...

int	getLevelCount ()
	Gets the total count of levels. More...

Font *	getFont (FontType type, int size)
	Gets a font to be used to display text. More...

void	removeFont (FontType type, int size)
	Removes the font if it has been loaded and nothing is using it. More...

void	removeFont (Font *font)
	Removes the font if it has been loaded and nothing is using it. More...

Texture *	getTexture (string filename, Texture *tex=NULL)
	Gets a Texture from the cache or generates it otherwise. More...

void	removeTexture (string filename)
	Removes the Texture if it has been loaded and nothing is using it. More...

void	removeTexture (Texture *Texture)
	Removes the Texture if it has been loaded and nothing is using it. More...

void	addAnimation (Animation *anim)
	add a Actor to the list of sprites More...

Animation *	getAnimation (string name)
	get a Actor* to the list of sprites More...

void	removeAnimation (Animation *anim)
	remove an Actor to the list of sprites More...

void	addActor (string name, Actor actor)
	add a Actor to the list of sprites More...

void	removeActor (string name)
	remove the Actor sp from the list of sprites More...

void	addObject (WorldObject sp, Level l=NULL)
	add a Object to the list of sprites More...

void	removeObject (WorldObject sp, Level l=NULL)
	remove the Object sp from the list of sprites More...

void	removeAllSprites (string name, Level *l=NULL)
	remove the Sprite sp from the list of sprites More...

void	removeAllParticleSystems (string name, Level *l=NULL)
	remove the ParticleSystem ps from the list of sprites More...

void	run ()
	Makes the game loop begin and load objects. More...

void	stop ()
	Makes the game loop stop. More...

Uint32	getFPS ()
	Returns the Current FPS of the game. More...

Point2D	getScreenSize ()
	Gets the Screen's dimensions. More...

Static Public Member Functions
static Game *	game ()
	This function is called to create an instance of the class. More...

Public Attributes
bool	ShowCollisions
	Decides whether or not to draw bounding boxes. More...

bool	ShowFPS
	Decides whether or not to output FPS. More...

bool	FollowMouse
	Decides whether or not the mouse should follow the cursor. More...

bool	Paused
	State of if the game should be paused or not. More...

bool	Focused
	Whether the game has focus or not. More...

Camera	mCamera
	Camera for the game. More...

Level *	CurrentLevel
	Stores the current level. More...

Sprite *	CurrentSprite
	Stores the current sprite while behaviors are being executed. More...

ParticleSystem *	CurrentParticleSystem
	Stores the current particle system while behaviors are being executed. More...

ParticleSystem::Particle *	CurrentParticle
	Stores the current particle while initialization or update functions are being executed. More...

Text *	CurrentText
	Stores the current text object while behaviors are being executed. More...

Level *	LoadingLevel
	The level that will be active next (for onloadFunctions) More...

FontType	Language
	The game's language. More...

Static Public Attributes
static const int	FRAMES_PER_SECOND = 60
	Number of times the Screen is drawn per second. More...

static const int	TICKS_PER_SECOND = 30
	Number of times the update loop is to run per second. More...

Protected Member Functions
	Game ()

	~Game ()

void	LoadResources ()
	Loads the game's resources. More...

void	SetStaticObjectValues ()
	Sets up nondefault static values. More...

void	addLevel (Level *l)
	Adds a level safely. More...

void	handleInput (SDL_Event event)
	Handles input. More...

void	draw ()
	draws More...

void	startDrawTimer ()
	Starts Drawing Timer to limit number of draws. More...

void	stopDrawTimer ()
	Stops the Drawing timer. More...

void	resize (int w, int h)
	Resizes the screen to wxh. More...

void	CalculateFramerate ()
	Calculates our frame rate or FPS (may not mean anything since Updates are locked at 25 and draws are locked at 60 max) More...

Static Protected Member Functions
static Uint32	pushUserEvent (Uint32 interval, void *data)
	Pushes user events (used in timer) More...

Protected Attributes
bool	Running
	Whether the game should keep running. More...

bool	poll
	Tells us whether to wait or poll. More...

bool	alwaysDraw
	Whether or not the game should draw as fast as possible. More...

SDL_TimerID	timer
	The drawing timer. More...

map< string, Level * >	mLevels
	Vector of pointers to all of the levels. More...

map< string, Actor >	mActors
	This level's actors. More...

vector< Animation * >	mAnims
	This level's Animations. More...

SDL_Surface *	mScreen
	The surface to draw to. More...

map< string, Behavior * >	mBehaviors
	This level's Behaviors. More...

map< pair< FontType, int > , Font * >	mFonts
	The fonts that exist (should be a small amount) More...

map< string, Texture * >	mTextures
	Textures that have been loaded (since we really don't want to delete them unless they're unused). More...

Uint32	unfocusTime
	keeping all timing in sync More...

Uint32	nextSecondTick
	estimated ticks to next second More...

Uint32	numFrames
	current number of frames More...

Uint32	currentFPS
	index into FPSs More...

Uint32	avgFPS
	the fps we want to display More...

Uint32	FPSs [FPSRANGE]
	list of frame values More...

Text *	txtFPS
	The fps text. More...

Uint32	nextDrawTick
	Tick at which the game should update next. More...

Uint32	nextGameTick
	Tick at which the game should update next. More...

int	drawLoops
	Number of times drawing has happened this frame (for limiting draw counts) More...

Static Protected Attributes
static Game *	m_instance = NULL
	Global static pointer used to ensure a single instance of the class. More...

static const int	FPSRANGE = 1
	fps data calc More...

static const Uint32	drawInterval = 1000/FRAMES_PER_SECOND
	Draw loop Throttling. More...

static const int	SKIP_TICKS = 1000 / TICKS_PER_SECOND
	Update loop Throttling. More...

static const int	MAX_FRAMESKIP = 5
	Max number of frames we want to update in a tick. More...

Friends
class	Camera
	so that we can use the screen's dimensions More...

Detailed Description

High-level controller for the game This class is tasked with the following:

game-wide operations
creating the SDL screen
loading levels from appropriate locations
switching levels as appropriate
storing game-wide settings
Handling Loading/Unloading of Font content from disk
Handling Loading/Unloading of Textures content from disk
Todo:
Handling Loading/Unloading of Audio content from disk

Definition at line 24 of file Game.h.

Constructor & Destructor Documentation

Game::Game ( )

protected

Initialize SDL

Set the title of our application window handler

Seed random number generator

Set values for Static objects

Initialize Keyboard Input

Initialize Joystick

Load Resources

Definition at line 23 of file Game.cpp.

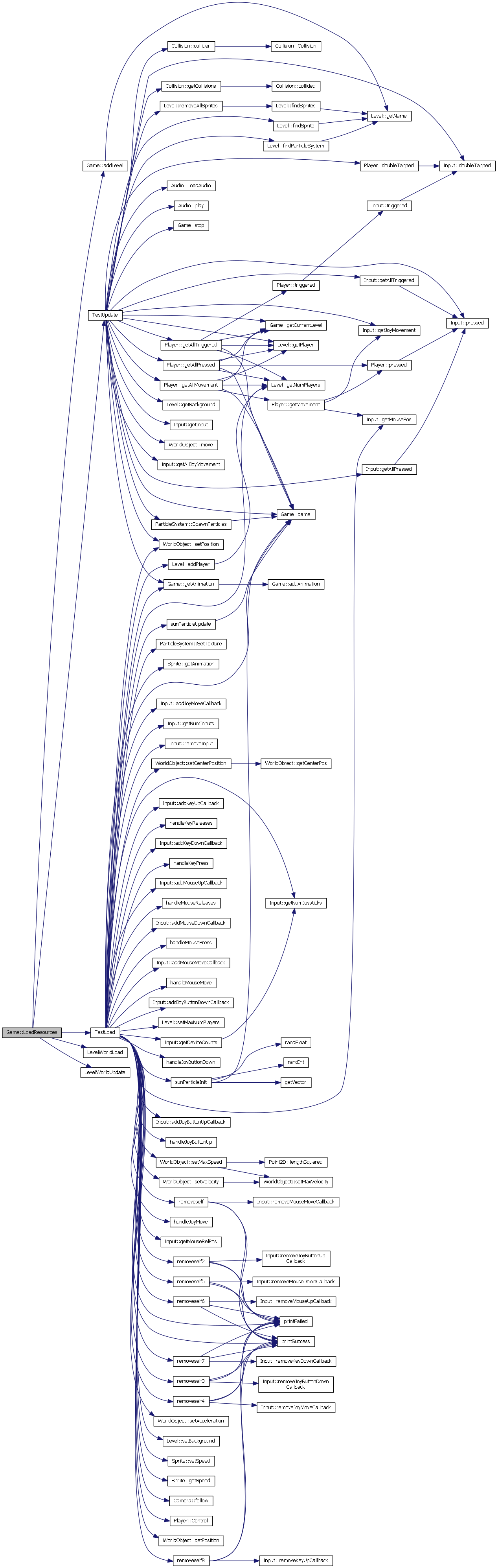

Here is the call graph for this function:

Game::~Game ( )

protected

Definition at line 112 of file Game.cpp.

Member Function Documentation

void Game::addActor	(	string	name,
		Actor	actor
	)

add a Actor to the list of sprites

Parameters

name	Name of the actor
actor	The actor to add

Todo:: add find for each of these things.

Definition at line 322 of file Game.cpp.

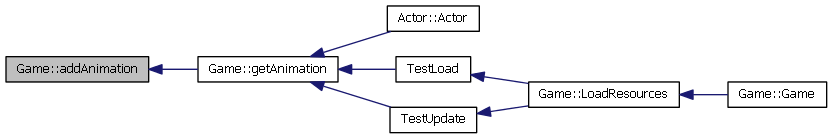

void Game::addAnimation ( Animation * anim )

add a Actor to the list of sprites

Parameters

anim	The actor to add

Definition at line 290 of file Game.cpp.

Here is the caller graph for this function:

void Game::addLevel ( Level * l )

protected

Adds a level safely.

Definition at line 366 of file Game.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Game::addObject	(	WorldObject *	sp,
		Level *	l = `NULL`
	)

add a Object to the list of sprites

Parameters

sp	Object to add
l	the level which to add the sprites to (defaults to CurrentLevel)

Definition at line 330 of file Game.cpp.

Here is the call graph for this function:

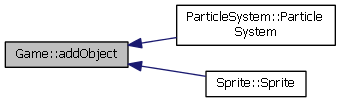

Here is the caller graph for this function:

void Game::CalculateFramerate ( )

protected

Calculates our frame rate or FPS (may not mean anything since Updates are locked at 25 and draws are locked at 60 max)

Definition at line 590 of file Game.cpp.

Here is the caller graph for this function:

void Game::draw ( )

protected

draws

All Drawing happens here.

Flip the working image buffer with the mScreen buffer

Definition at line 517 of file Game.cpp.

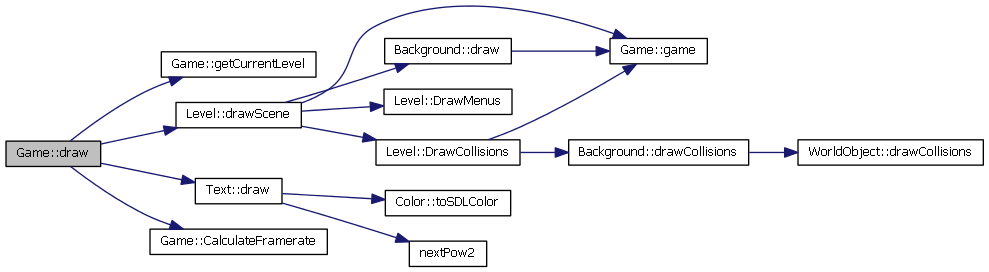

Here is the call graph for this function:

Here is the caller graph for this function:

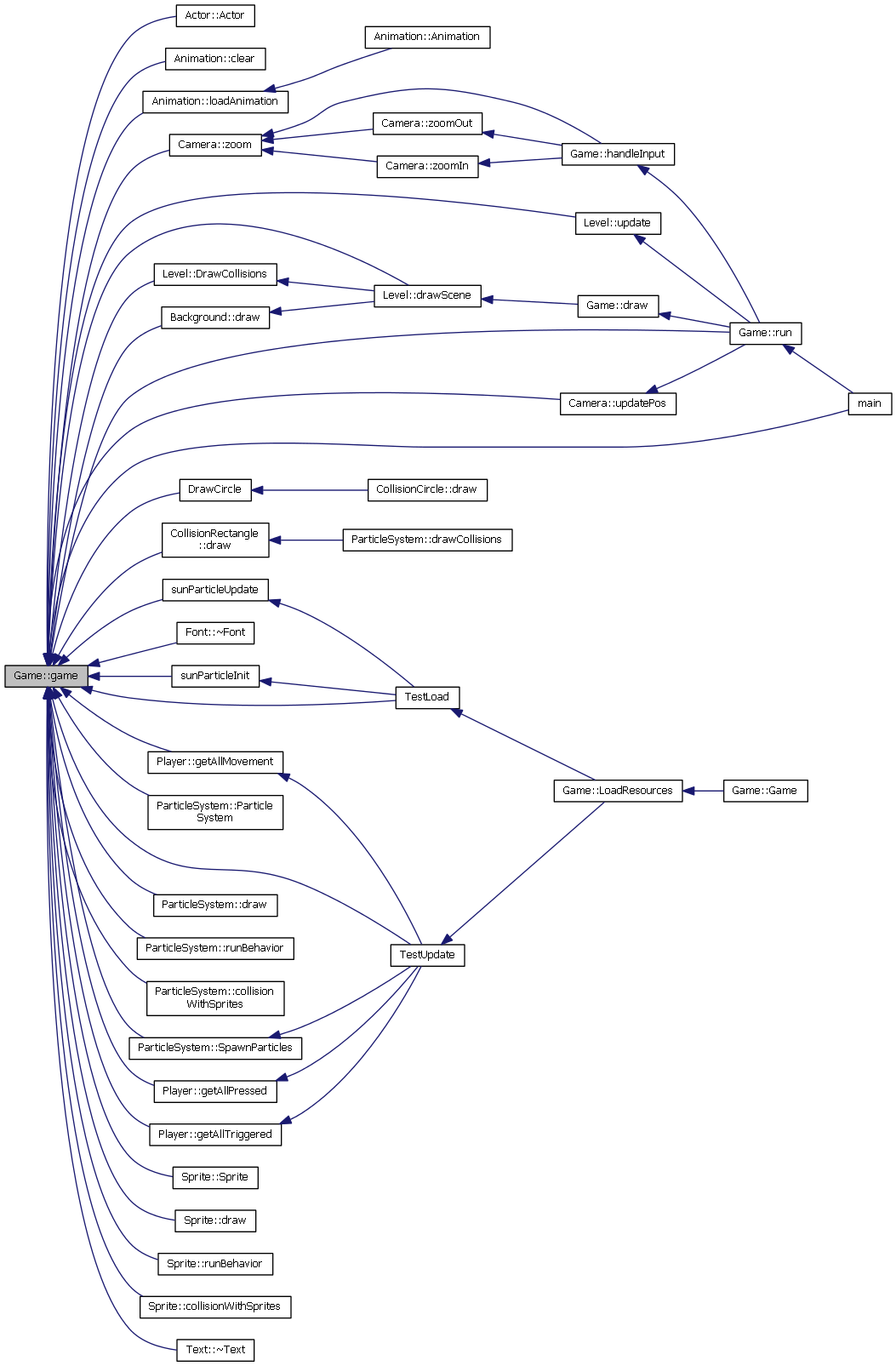

Game * Game::game ( )

static

This function is called to create an instance of the class.

Calling the constructor publicly is not allowed. The constructor is private and is only called by this Instance function.

Definition at line 17 of file Game.cpp.

Here is the caller graph for this function:

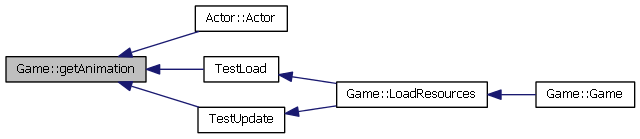

Animation * Game::getAnimation ( string name )

get a Actor* to the list of sprites

Parameters

name	Name of the actor

Returns: Pointer to the actor we requested or null

Definition at line 294 of file Game.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Level * Game::getCurrentLevel ( )

Gets the current level being played.

Returns: current level

Definition at line 120 of file Game.cpp.

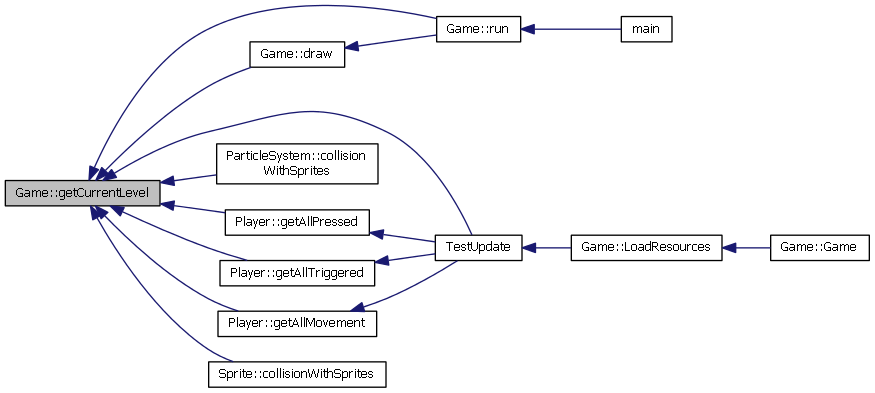

Here is the caller graph for this function:

Font * Game::getFont	(	FontType	type = `Game::game()->Language`,
		int	size = `24`
	)

Gets a font to be used to display text.

This uses a cache of loaded fonts in order to conserve rendering time.

Parameters

size	Size (in pixels) of the desired font
type	Type of text to be displayed

Returns: Pointer to the Font to be returned Null if not found

Definition at line 216 of file Game.cpp.

Uint32 Game::getFPS ( )

inline

Returns the Current FPS of the game.

Returns: Unsigned int representing the FPS

Definition at line 230 of file Game.h.

Here is the caller graph for this function:

int Game::getLevelCount ( )

Gets the total count of levels.

Returns: number of levels

Definition at line 152 of file Game.cpp.

string Game::getLevelKey ( )

Gets the index of the current level being played.

Returns: index of the current level

Definition at line 125 of file Game.cpp.

Here is the call graph for this function:

Point2D Game::getScreenSize ( )

inline

Gets the Screen's dimensions.

Definition at line 235 of file Game.h.

Here is the caller graph for this function:

Texture * Game::getTexture	(	string	filename,
		Texture *	tex = `NULL`
	)

Gets a Texture from the cache or generates it otherwise.

Parameters

filename	filename for the texture
tex	Pointer to the texture to use otherwise returns the Texture

Returns: Pointer to the Texture to be returned (always returns a value)

Definition at line 248 of file Game.cpp.

Here is the caller graph for this function:

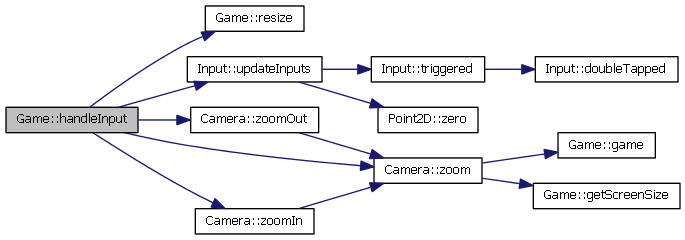

void Game::handleInput ( SDL_Event event )

protected

Handles input.

If the event is a click on the close button in the top right corner of the window, we kill the application

Pause / unpause the game when window looses/gains focus

If our event reports a key being pressed down we process it

<

Todo:: get rid of most of these. Put the rest in a #define determining whether or not to use cheats

Definition at line 377 of file Game.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Level * Game::loadLevel ( string name )

Loads content for the next level to play.

Parameters

name	Name of the level to load

Definition at line 140 of file Game.cpp.

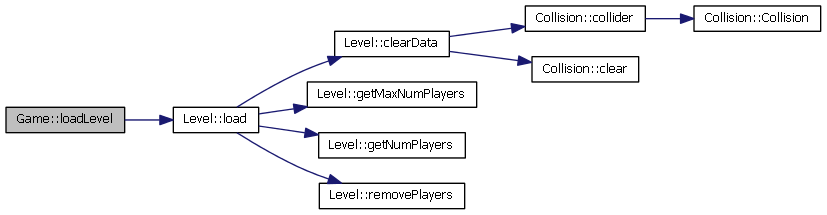

Here is the call graph for this function:

Here is the caller graph for this function:

void Game::LoadResources ( )

protected

Loads the game's resources.

Definition at line 7 of file LoadResources.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Uint32 Game::pushUserEvent	(	Uint32	interval,
		void *	data
	)

staticprotected

Pushes user events (used in timer)

Definition at line 575 of file Game.cpp.

Here is the caller graph for this function:

void Game::removeActor ( string name )

remove the Actor sp from the list of sprites

Parameters

name	Name of the actor to remove

Definition at line 326 of file Game.cpp.

void Game::removeAllParticleSystems	(	string	name,
		Level *	l = `NULL`
	)

remove the ParticleSystem ps from the list of sprites

Parameters

name	ParticleSystems to remove
l	the level which to add the sprites to (defaults to CurrentLevel)

Definition at line 357 of file Game.cpp.

Here is the call graph for this function:

void Game::removeAllSprites	(	string	name,
		Level *	l = `NULL`
	)

remove the Sprite sp from the list of sprites

Parameters

name	Sprites to remove
l	the level which to add the sprites to (defaults to CurrentLevel)

Definition at line 348 of file Game.cpp.

Here is the call graph for this function:

void Game::removeAnimation ( Animation * anim )

remove an Actor to the list of sprites

Parameters

anim	The actor to add

Definition at line 312 of file Game.cpp.

void Game::removeFont	(	FontType	type = `English`,
		int	size = `24`
	)

Removes the font if it has been loaded and nothing is using it.

Parameters

type	This is the font's name to be removed
size	Size (in pixels) of the font to be removed

Definition at line 232 of file Game.cpp.

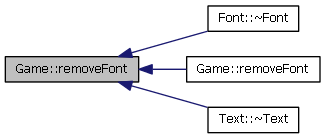

Here is the caller graph for this function:

void Game::removeFont ( Font * font )

Removes the font if it has been loaded and nothing is using it.

Parameters

font	The font to try to remove.

Definition at line 244 of file Game.cpp.

Here is the call graph for this function:

void Game::removeObject	(	WorldObject *	sp,
		Level *	l = `NULL`
	)

remove the Object sp from the list of sprites

Parameters

sp	Object to remove
l	the level which to add the sprites to (defaults to CurrentLevel)

Definition at line 339 of file Game.cpp.

Here is the call graph for this function:

void Game::removeTexture ( string filename )

Removes the Texture if it has been loaded and nothing is using it.

Parameters

filename Filename of the Texture to get/add

Definition at line 273 of file Game.cpp.

Here is the caller graph for this function:

void Game::removeTexture ( Texture * Texture )

Removes the Texture if it has been loaded and nothing is using it.

Parameters

Texture The Texture to try to remove.

Definition at line 286 of file Game.cpp.

void Game::resize	(	int	w = `640`,
		int	h = `480`
	)

protected

Resizes the screen to wxh.

Parameters

w	Width of the screen
h	Height of the screen

Definition at line 549 of file Game.cpp.

Here is the caller graph for this function:

void Game::run ( )

Makes the game loop begin and load objects.

Game Loop

This will let us track events

Wait for an event to occur

Todo:: remove this after testing done

Definition at line 157 of file Game.cpp.

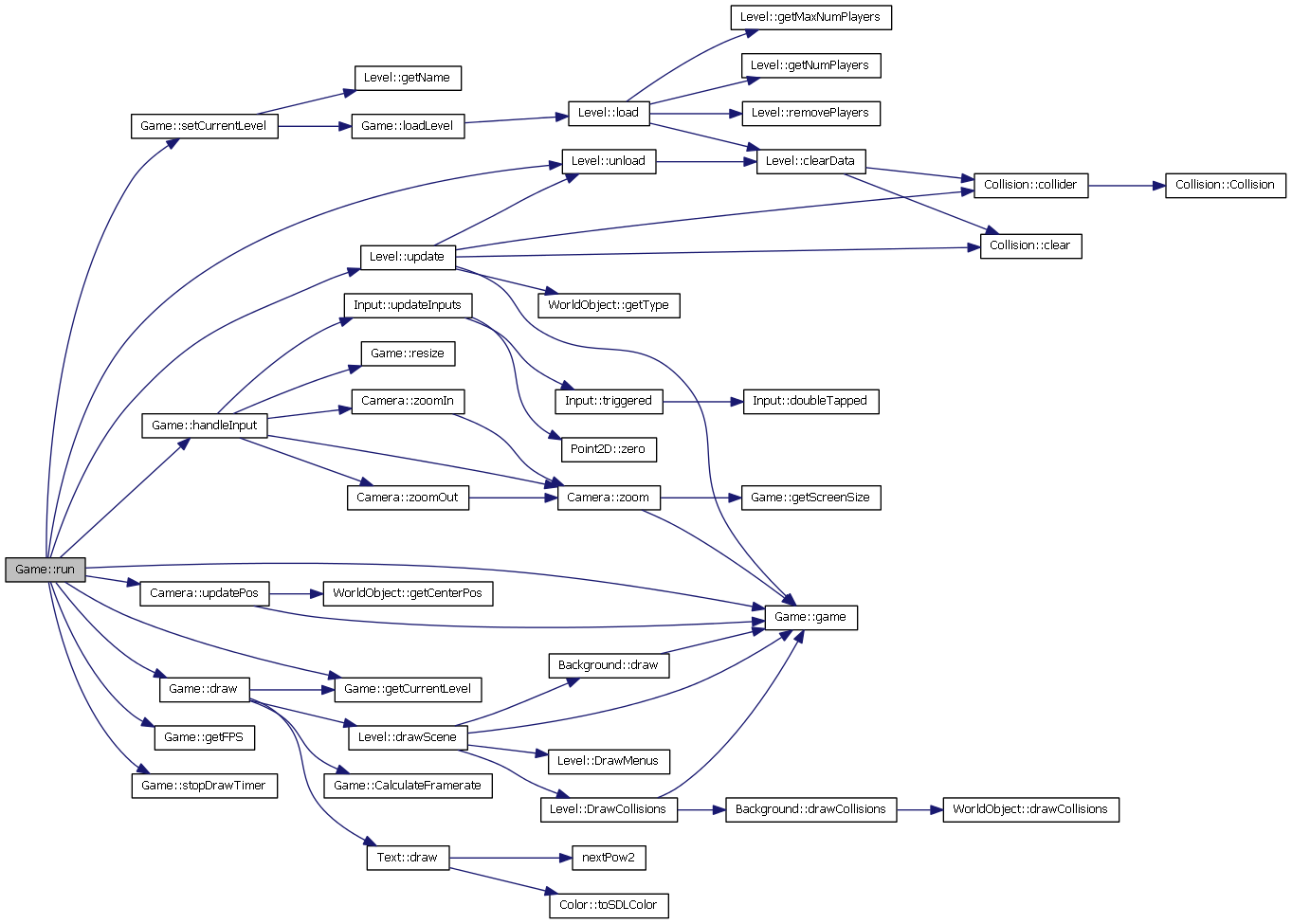

Here is the call graph for this function:

Here is the caller graph for this function:

void Game::setCurrentLevel ( string name )

Sets the current level to play.

Parameters

name	Name of the level to load

Definition at line 130 of file Game.cpp.

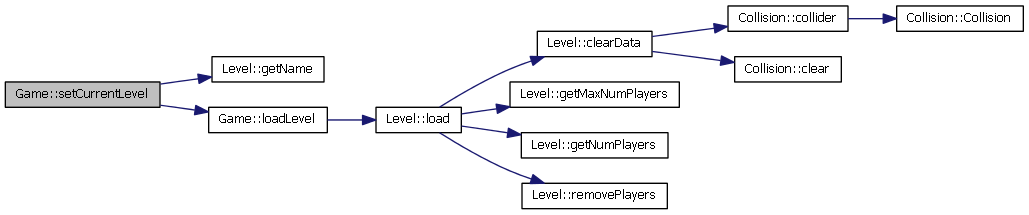

Here is the call graph for this function:

Here is the caller graph for this function:

void Game::SetStaticObjectValues ( )

protected

Sets up nondefault static values.

Definition at line 13 of file LoadResources.cpp.

Here is the caller graph for this function:

void Game::startDrawTimer ( )

protected

Starts Drawing Timer to limit number of draws.

Definition at line 533 of file Game.cpp.

Here is the call graph for this function:

void Game::stop ( )

Makes the game loop stop.

Definition at line 212 of file Game.cpp.

Here is the caller graph for this function:

void Game::stopDrawTimer ( )

protected

Stops the Drawing timer.

Definition at line 543 of file Game.cpp.

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Camera

friend

so that we can use the screen's dimensions

Definition at line 58 of file Game.h.

Member Data Documentation

bool Game::alwaysDraw

protected

Whether or not the game should draw as fast as possible.

Definition at line 248 of file Game.h.

Uint32 Game::avgFPS

protected

the fps we want to display

Definition at line 304 of file Game.h.

Uint32 Game::currentFPS

protected

index into FPSs

Definition at line 302 of file Game.h.

Level* Game::CurrentLevel

Stores the current level.

Definition at line 61 of file Game.h.

ParticleSystem::Particle* Game::CurrentParticle

Stores the current particle while initialization or update functions are being executed.

Definition at line 70 of file Game.h.

ParticleSystem* Game::CurrentParticleSystem

Stores the current particle system while behaviors are being executed.

Definition at line 67 of file Game.h.

Sprite* Game::CurrentSprite

Stores the current sprite while behaviors are being executed.

Definition at line 64 of file Game.h.

Text* Game::CurrentText

Stores the current text object while behaviors are being executed.

Definition at line 73 of file Game.h.

const Uint32 Game::drawInterval = 1000/FRAMES_PER_SECOND

staticprotected

Draw loop Throttling.

Ticks to skip before drawing again.

Definition at line 312 of file Game.h.

int Game::drawLoops

protected

Number of times drawing has happened this frame (for limiting draw counts)

Definition at line 325 of file Game.h.

bool Game::Focused

Whether the game has focus or not.

Definition at line 52 of file Game.h.

bool Game::FollowMouse

Decides whether or not the mouse should follow the cursor.

Definition at line 46 of file Game.h.

const int Game::FPSRANGE = 1

staticprotected

fps data calc

Buffer size of fps datas to keep in calculating fps

Definition at line 296 of file Game.h.

Uint32 Game::FPSs[FPSRANGE]

protected

list of frame values

Definition at line 306 of file Game.h.

const int Game::FRAMES_PER_SECOND = 60

static

Number of times the Screen is drawn per second.

Definition at line 35 of file Game.h.

FontType Game::Language

The game's language.

Definition at line 79 of file Game.h.

Level* Game::LoadingLevel

The level that will be active next (for onloadFunctions)

Definition at line 76 of file Game.h.

Game * Game::m_instance = NULL

staticprotected

Global static pointer used to ensure a single instance of the class.

Definition at line 254 of file Game.h.

map<string,Actor> Game::mActors

protected

This level's actors.

Definition at line 275 of file Game.h.

vector<Animation*> Game::mAnims

protected

This level's Animations.

Todo:: make into map?

Definition at line 278 of file Game.h.

const int Game::MAX_FRAMESKIP = 5

staticprotected

Max number of frames we want to update in a tick.

Definition at line 321 of file Game.h.

map<string,Behavior*> Game::mBehaviors

protected

This level's Behaviors.

Definition at line 283 of file Game.h.

Camera Game::mCamera

Camera for the game.

Definition at line 55 of file Game.h.

map<pair<FontType, int>, Font*> Game::mFonts

protected

The fonts that exist (should be a small amount)

Definition at line 286 of file Game.h.

map<string, Level*> Game::mLevels

protected

Vector of pointers to all of the levels.

Definition at line 272 of file Game.h.

SDL_Surface* Game::mScreen

protected

The surface to draw to.

Definition at line 281 of file Game.h.

map<string, Texture* > Game::mTextures

protected

Textures that have been loaded (since we really don't want to delete them unless they're unused).

Definition at line 289 of file Game.h.

Uint32 Game::nextDrawTick

protected

Tick at which the game should update next.

Definition at line 314 of file Game.h.

Uint32 Game::nextGameTick

protected

Tick at which the game should update next.

Definition at line 323 of file Game.h.

Uint32 Game::nextSecondTick

protected

estimated ticks to next second

Definition at line 298 of file Game.h.

Uint32 Game::numFrames

protected

current number of frames

Definition at line 300 of file Game.h.

bool Game::Paused

State of if the game should be paused or not.

Definition at line 49 of file Game.h.

bool Game::poll

protected

Tells us whether to wait or poll.

Definition at line 245 of file Game.h.

bool Game::Running

protected

Whether the game should keep running.

Definition at line 242 of file Game.h.

bool Game::ShowCollisions

Decides whether or not to draw bounding boxes.

Definition at line 40 of file Game.h.

bool Game::ShowFPS

Decides whether or not to output FPS.

Definition at line 43 of file Game.h.

const int Game::SKIP_TICKS = 1000 / TICKS_PER_SECOND

staticprotected

Update loop Throttling.

Number of ticks to skip for next update loop

Definition at line 319 of file Game.h.

const int Game::TICKS_PER_SECOND = 30

static

Number of times the update loop is to run per second.

Definition at line 37 of file Game.h.

SDL_TimerID Game::timer

protected

The drawing timer.

Definition at line 251 of file Game.h.

Text* Game::txtFPS

protected

The fps text.

Definition at line 308 of file Game.h.

Uint32 Game::unfocusTime

protected

keeping all timing in sync

Definition at line 292 of file Game.h.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
